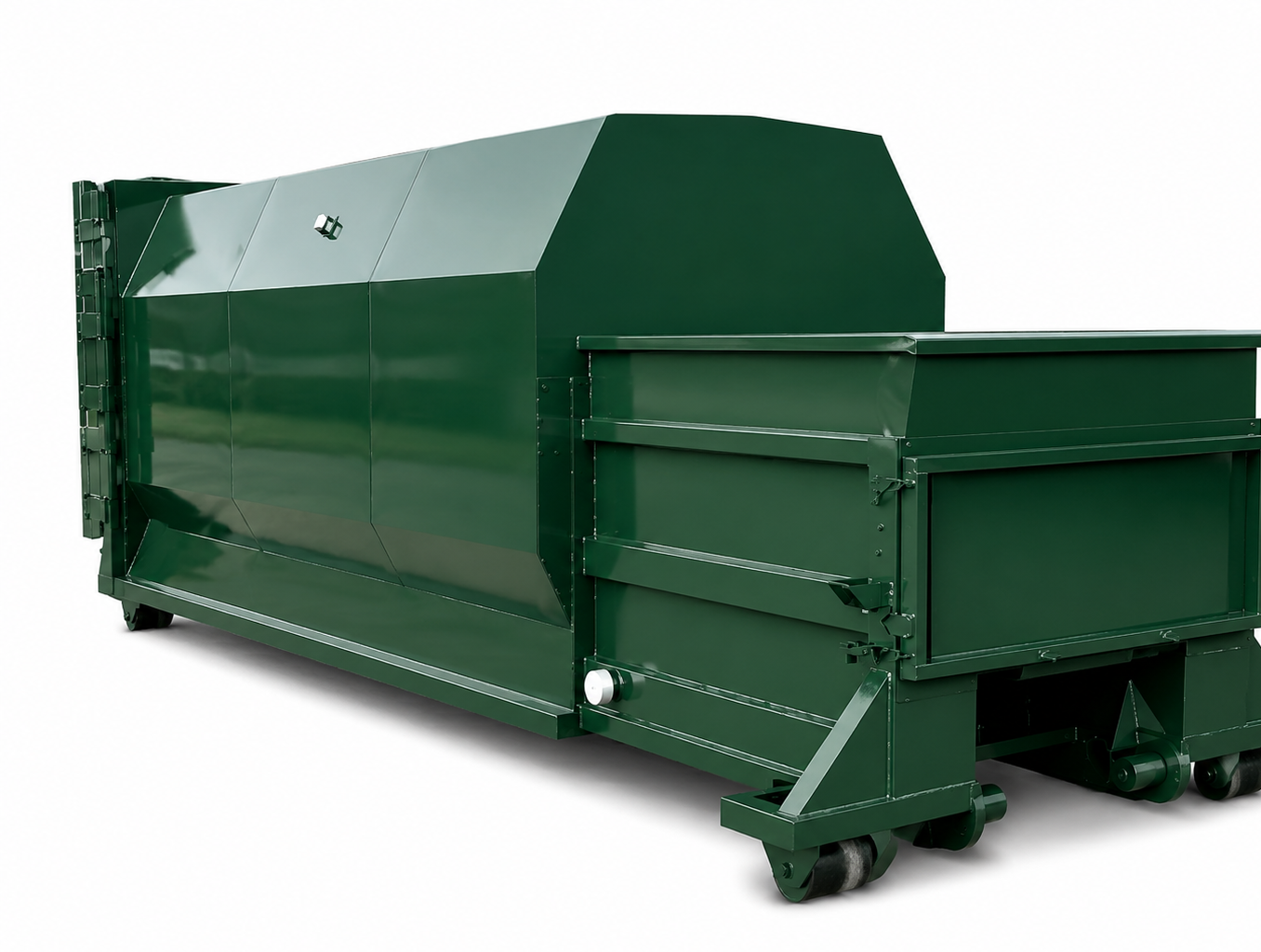

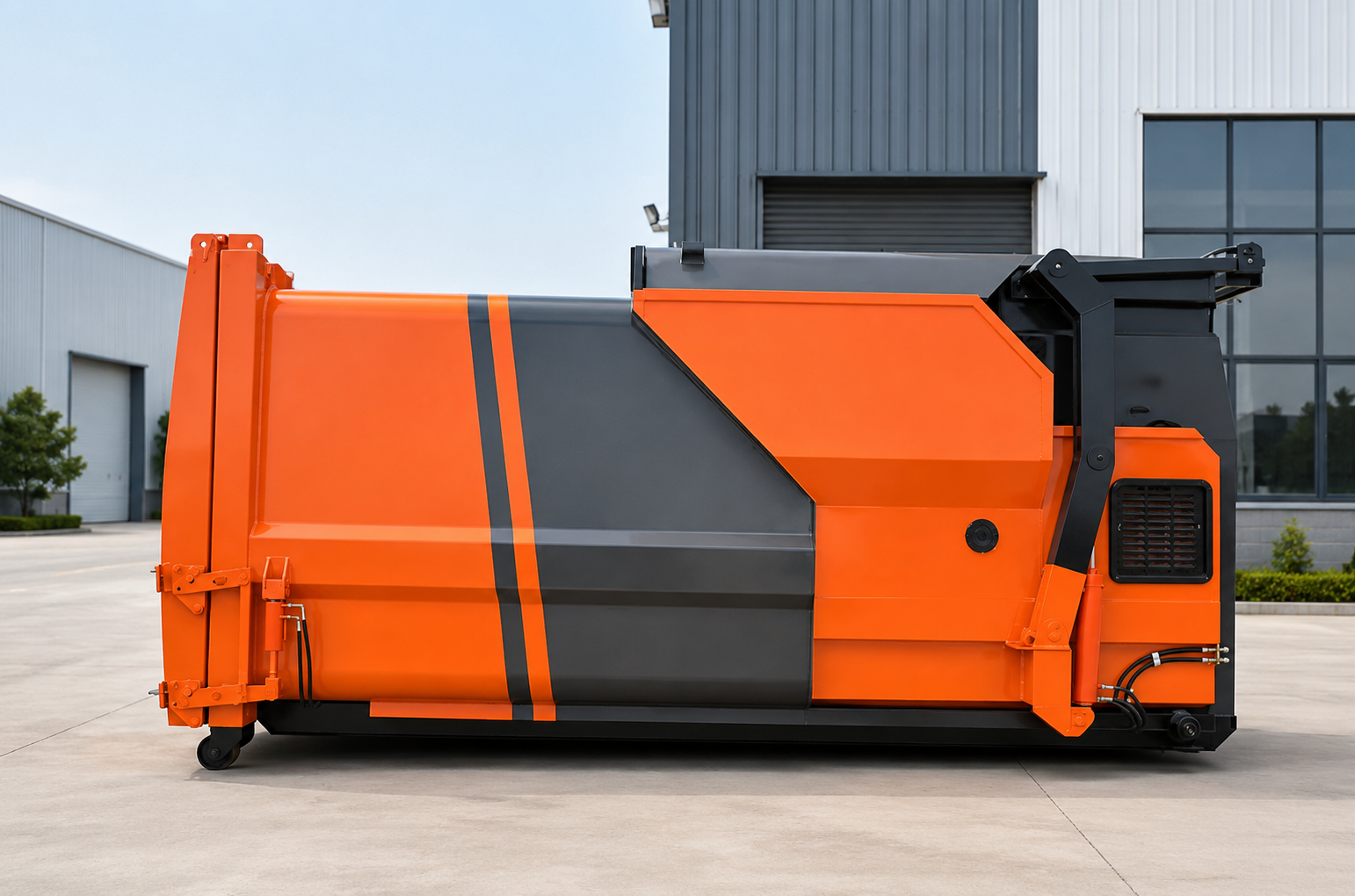

A Hopper Trash Compactor is an efficient waste-management solution that combines waste receiving, mechanical compaction, temporary storage, and transportation into one integrated system. It is typically composed of a reinforced hopper, compression chamber, hydraulic compaction unit, tipping device, storage container, and intelligent electrical control system. Its compact and modular structure requires minimal installation space and reduces the need for costly civil construction compared with traditional fixed waste-transfer stations. Thanks to its flexible layout and strong processing capacity, the equipment can be installed in commercial centers, residential communities, factories, schools, hospitals, logistics parks, and other locations where space is limited or large volumes of waste must be handled efficiently. By compressing waste before transportation, it also helps reduce collection frequency, lower transportation costs, improve site cleanliness, and minimize odor and secondary pollution.
SENVEY’s Hopper Trash Compactor is designed to reduce waste volume, lower transportation costs, and improve overall collection efficiency. Suitable for dry, wet, bulky, and mixed waste, our equipment provides reliable compaction performance for a wide range of commercial and industrial applications. With flexible configuration options, professional technical support, and responsive customer service, SENVEY helps businesses develop a cleaner, more efficient, and cost-effective waste disposal solution.

| Compression | Horizontal |
| Waste bin volume (m³) | 6m³, 9m³,12m³ ,15m³ ,18m³,Custom sizes |
| Hook centre height (mm) | 1570 |
| Density of compressed rubbish block(kg/m³) | 750kg/m³ |
| Compression cycle time (s) | 45s |
| Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
| Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
| Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
| Machine weight (kg) | 4800kg,5500kg, 6100kg,6600kg, |
| Power supply | Local working voltage |
| Operation mode | automatic + manual |
| Size | 6m³: 4200 * 2440 * 2600 (mm);
Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Features
When waste is loaded into the Hopper Trash Compactor, the tipping system feeds the material into the compaction chamber, where the hydraulic compression mechanism applies strong pressure to reduce the waste volume significantly. For mixed municipal solid waste, the compaction ratio is typically around 3:1, allowing a large amount of loose waste to be compressed into a much denser form for easier storage and transport. After compaction, the waste is contained in a sealed container, helping control odors and keep the site clean. For transportation, the compactor is commonly used together with a hook lift truck. Once the container is full, the truck lifts the entire loaded unit and transports it to the disposal or transfer site. After unloading, the empty container can be returned for the next cycle. This one-truck-multiple-container operating method enables continuous rotation, improves transfer efficiency, and helps reduce overall transportation and labor costs.
